TYPICAL PROJECT STRUCTURE
01 - DESIGN FUNDAMENTALS

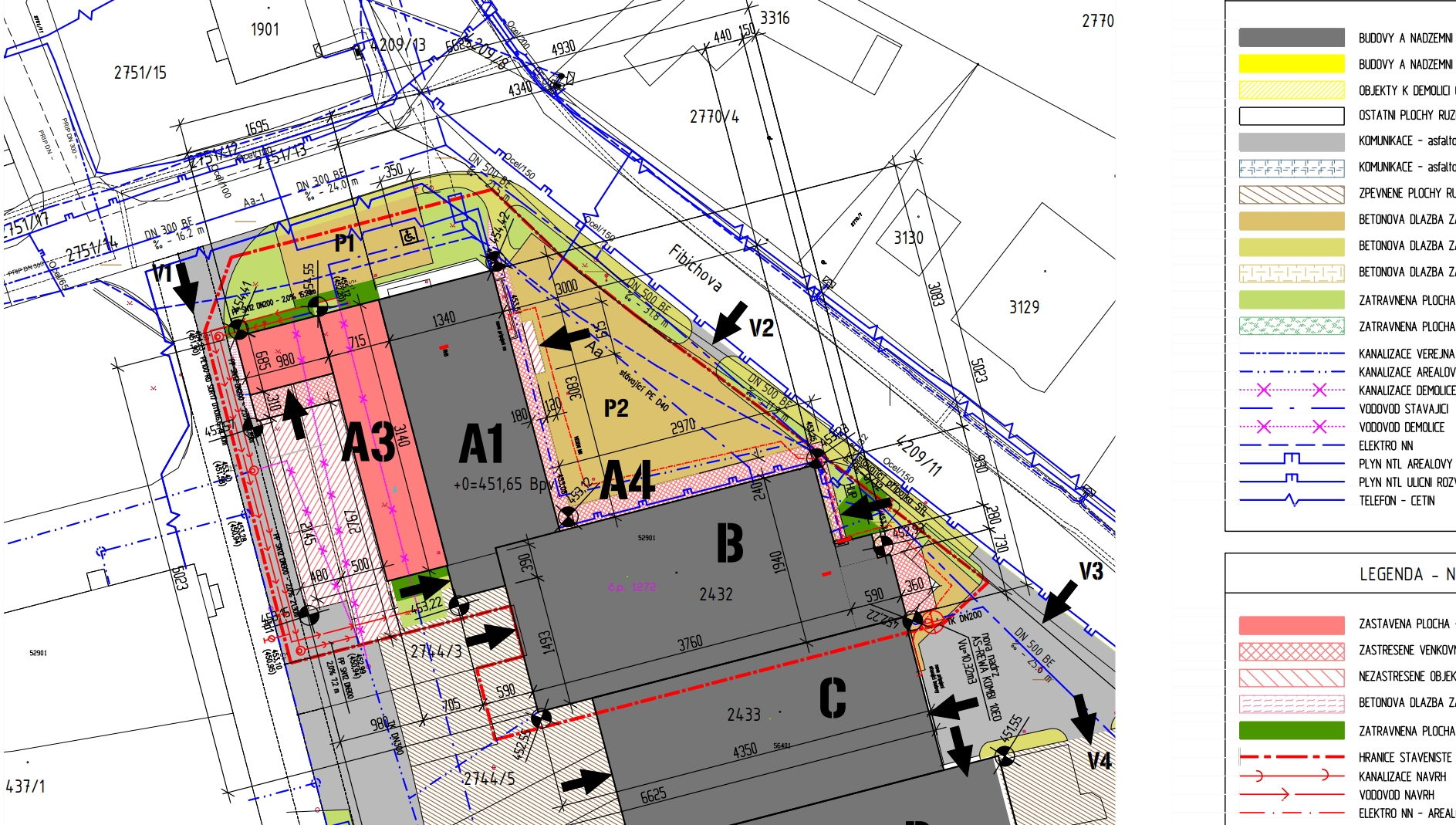

01.01 - MASTER PLAN / ZONING PLAN / LAND USE PLAN / REGULATIONS PLAN etc.

to analyze all regulations that apply to our building site:
type of function, height limits, red lines, offset lines, built density, distances, protection zones, roads... etc.

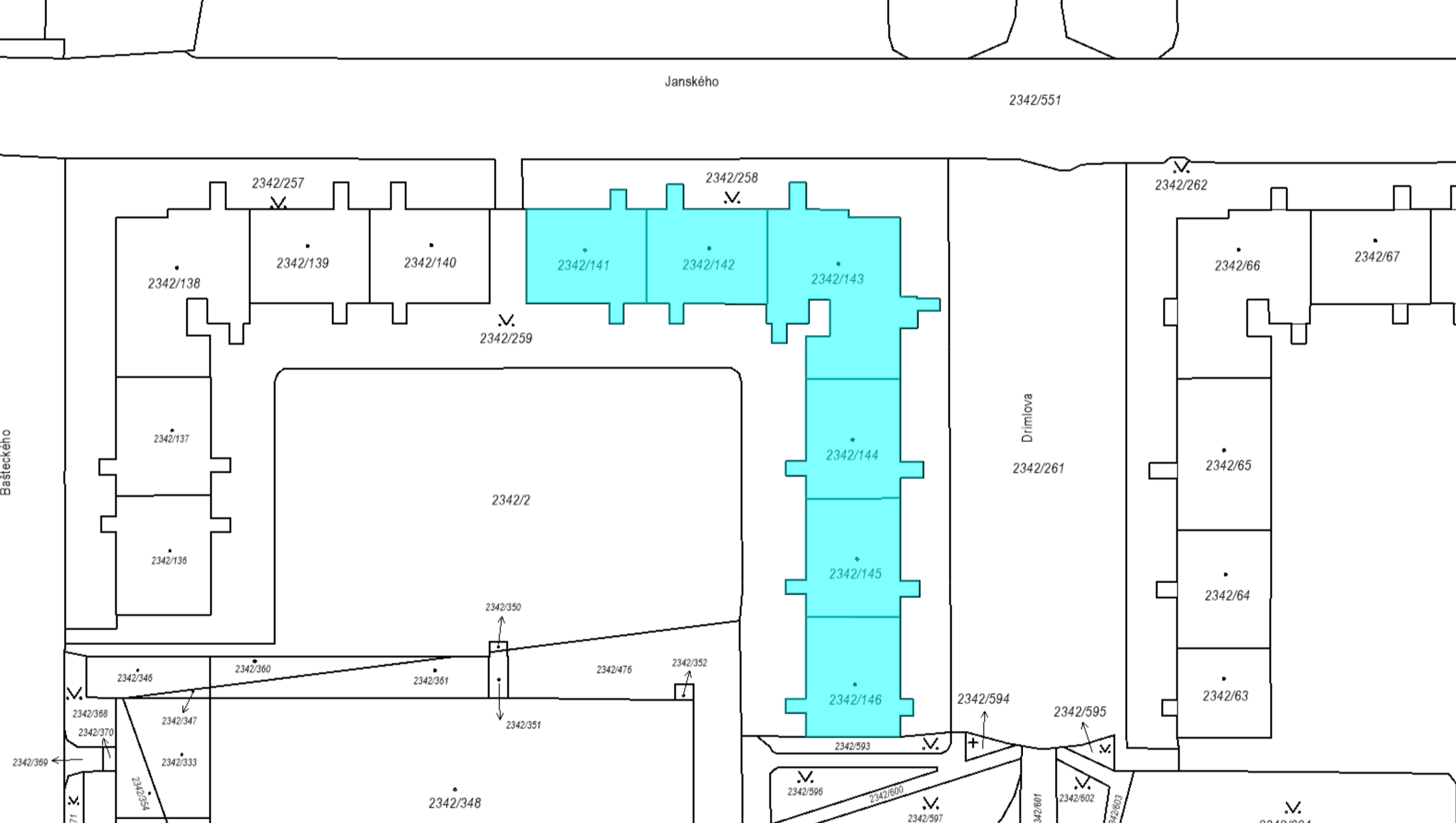

01.02 - CADASTRAL MAP

to check all owners, burdens and other law limitations around

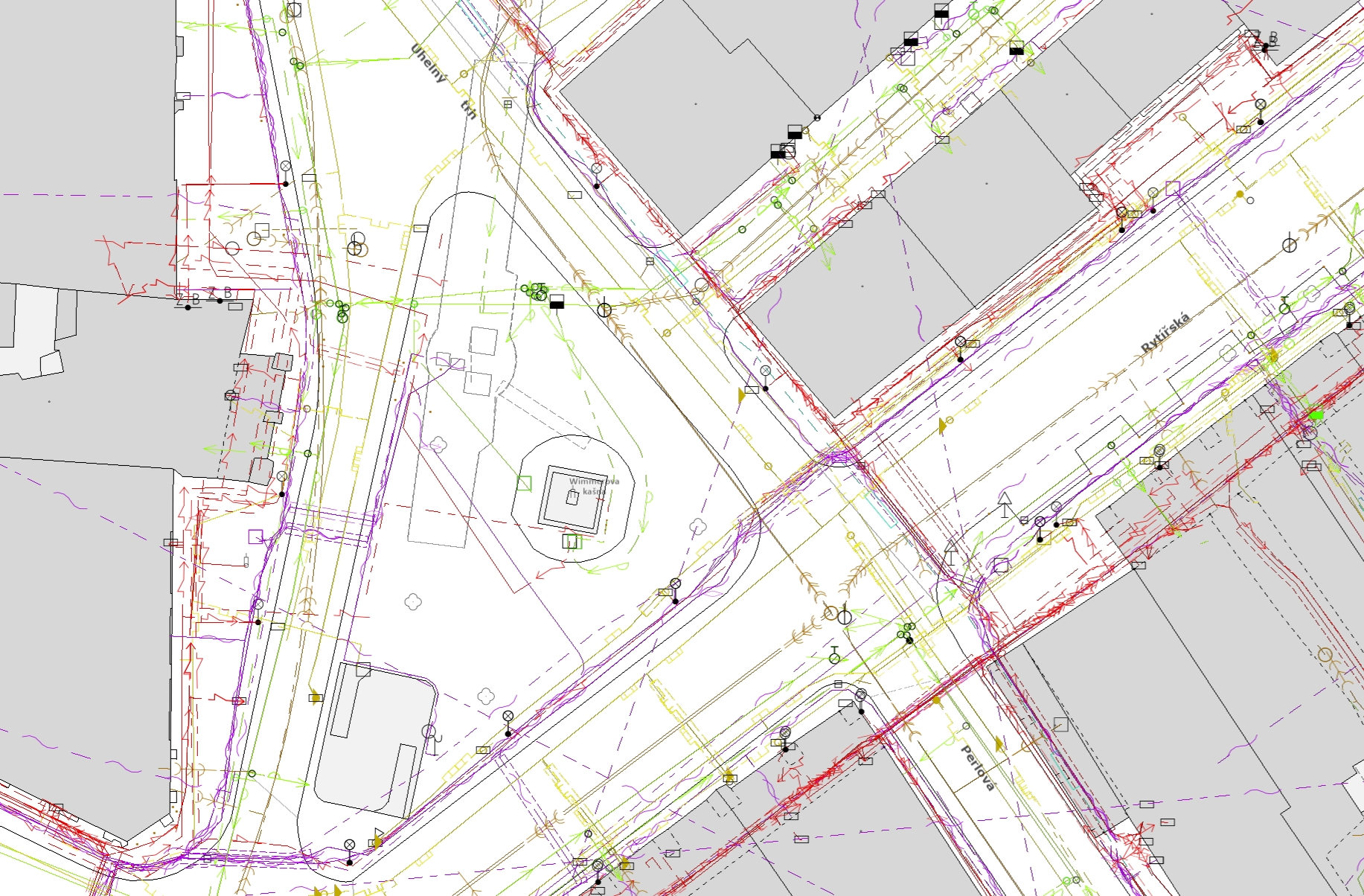

01.03 - UTILITIES MAP

to check all pipings, cabels etc. and their max. capacity

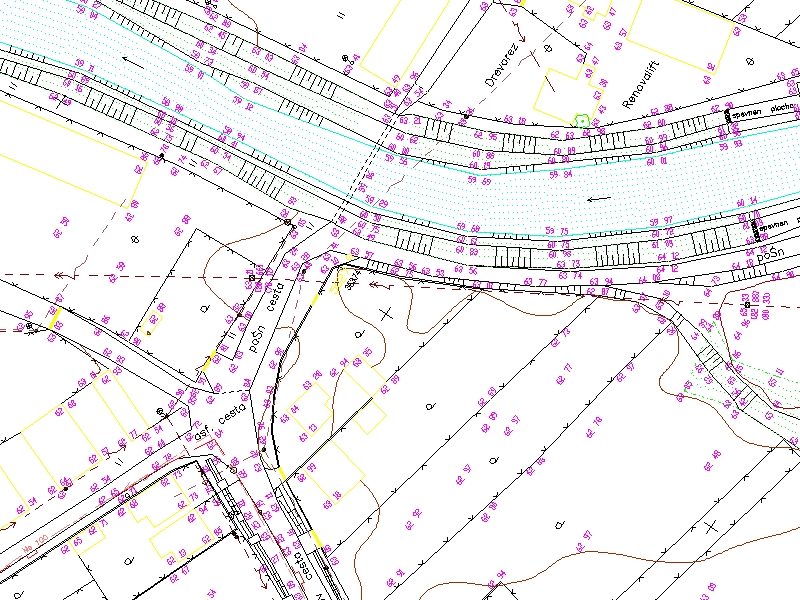

01.04 - GEODETIC SURWEY

detailed targeting of all points and their levels, on the construction site and in the surrounding area

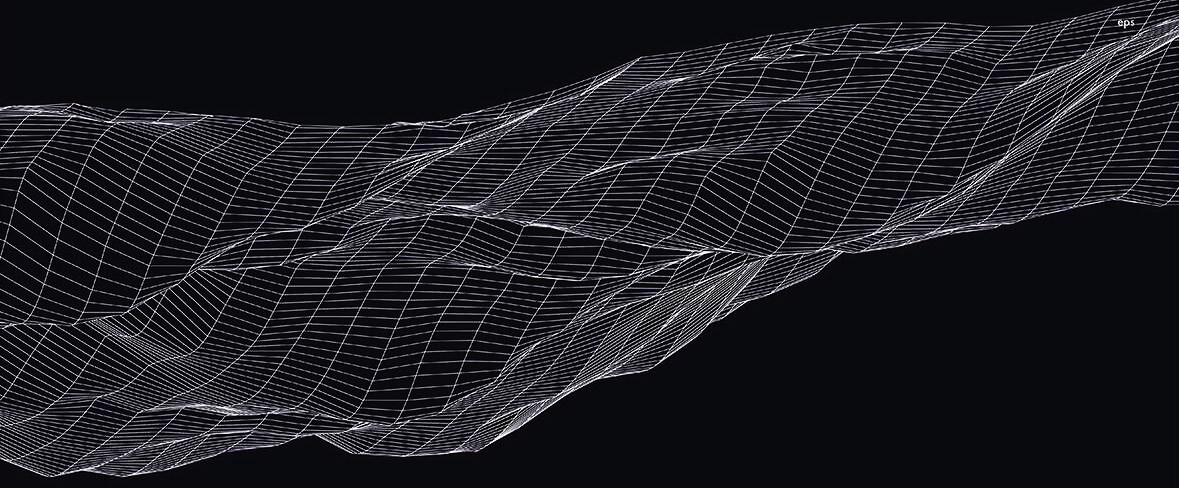

alternatively 3D mapping, if possible (if not, we can generate it from 2D mapping ourselves)

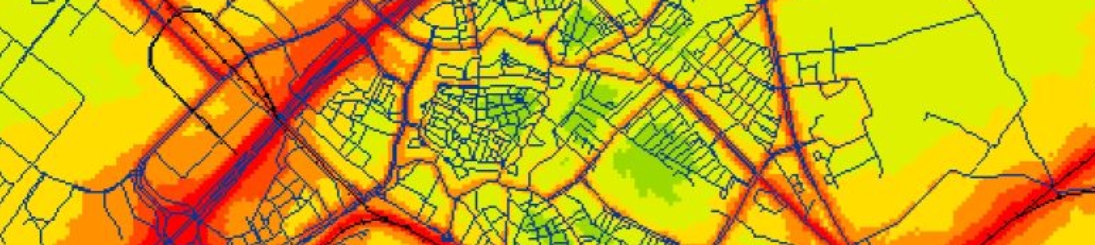

01.05 - other specific maps and surveys

such as noise, radon etc.

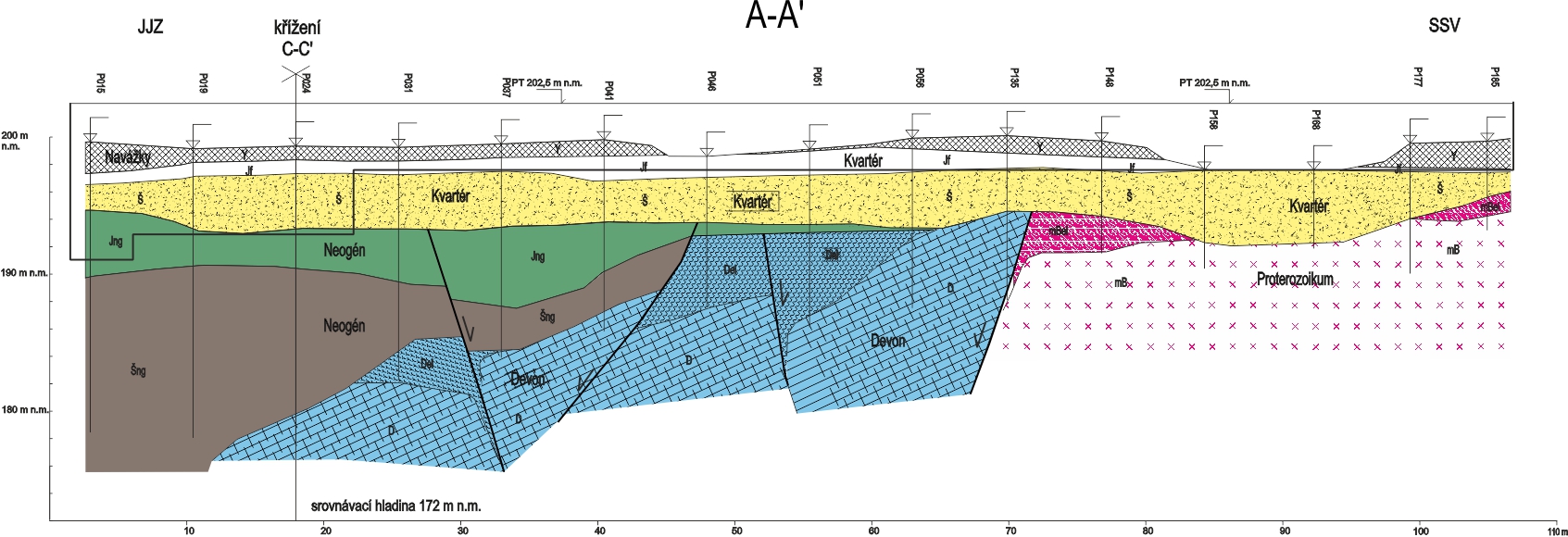

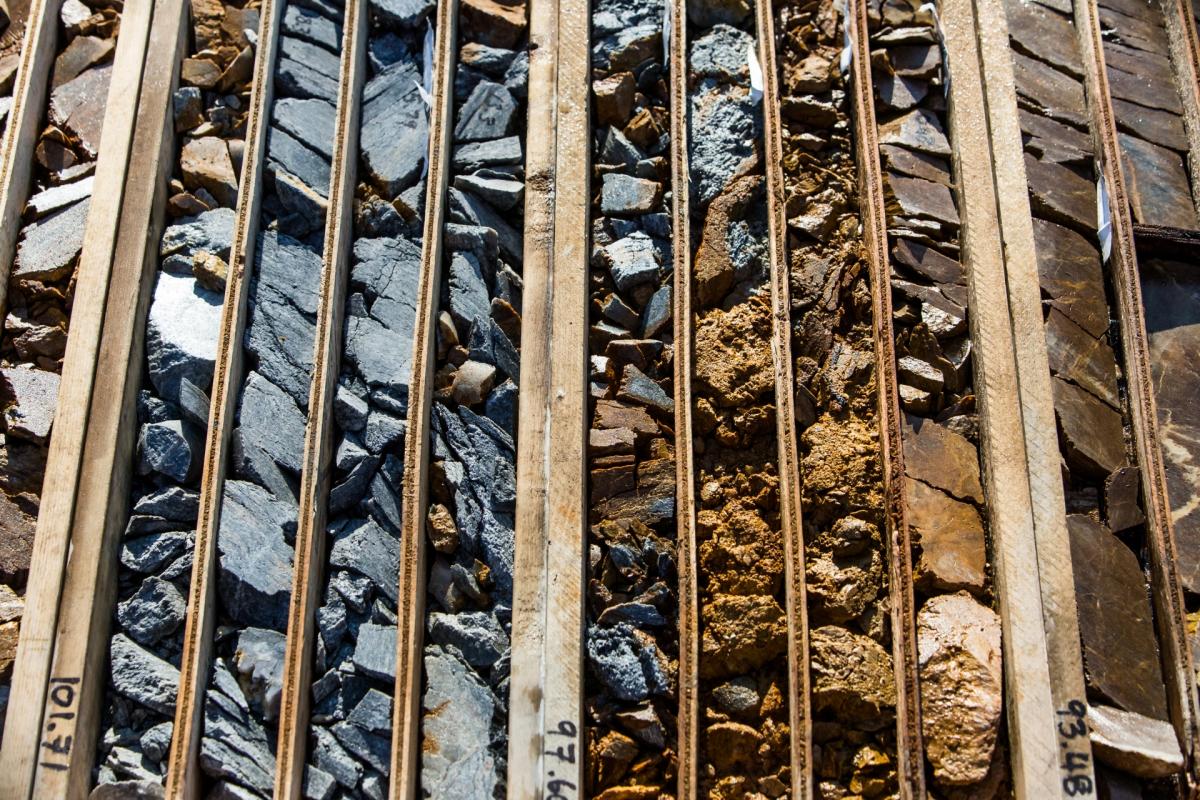

01.06 - GEOLOGICAL SURVEY

exploratory drillings, laboratory evaluation of the bearing capacity and compressibility of the subsoil, groundwater, etc.

01.07 - PHOTO DOCUMENTATION

- photos from the field

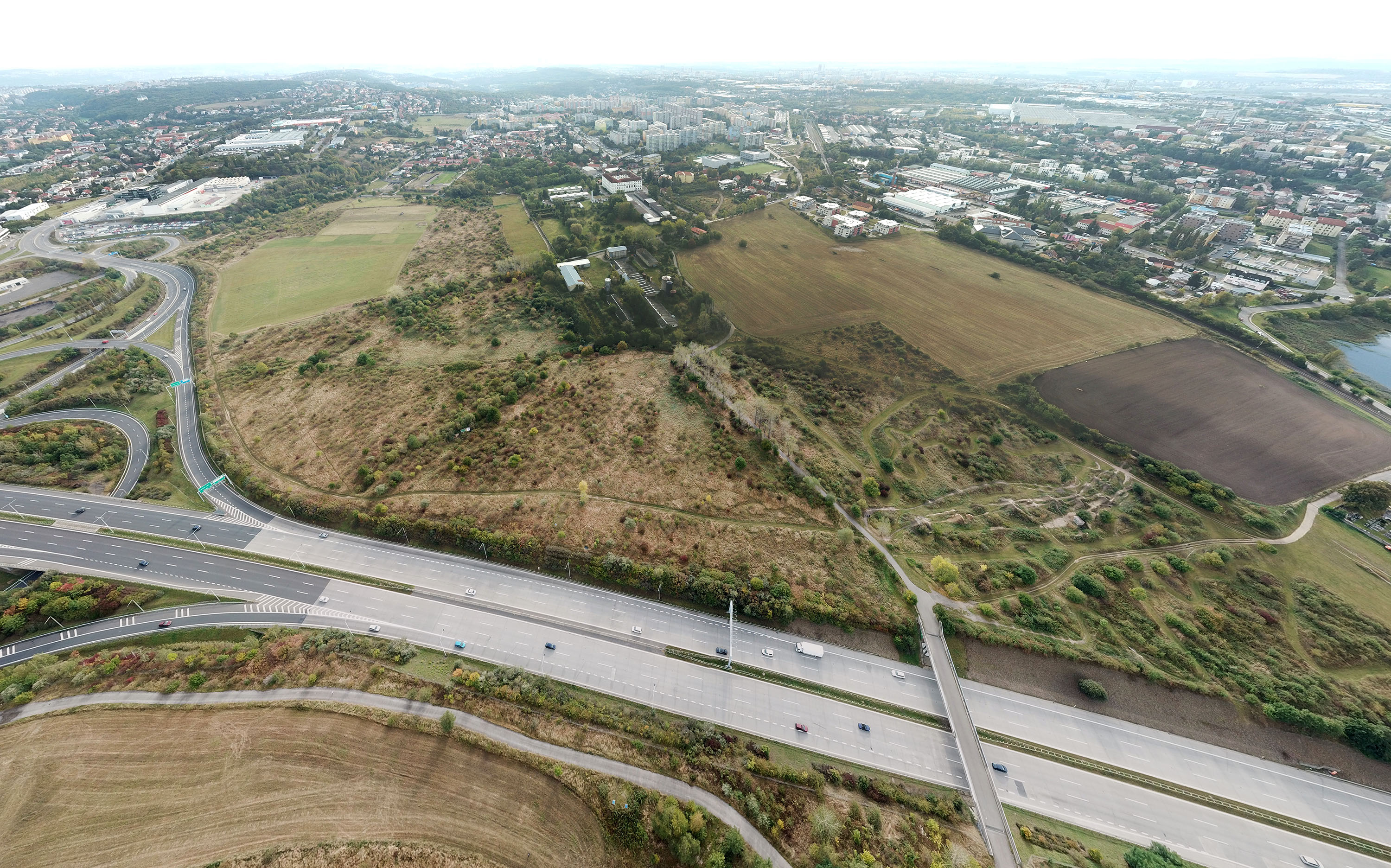

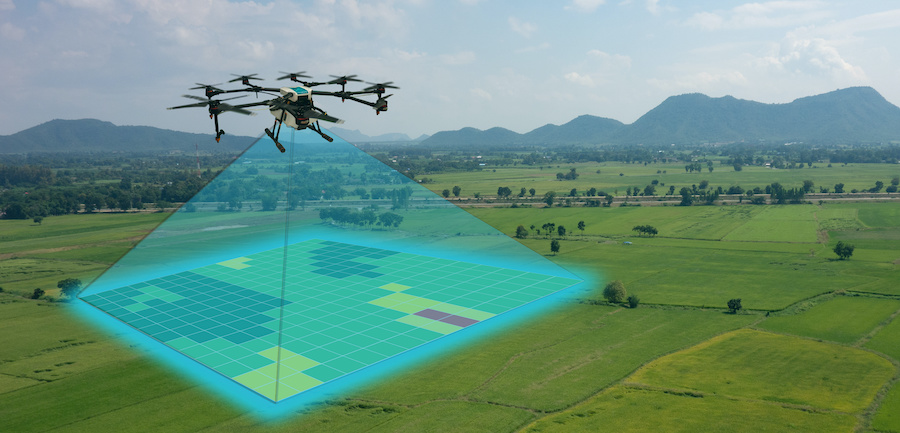

- photos by drone from all sides and from different heights
static panoramic photo is foremost the best option (moving video is not usefull at all)


- scanning the area with a lidar (not necessary for simple terrain)

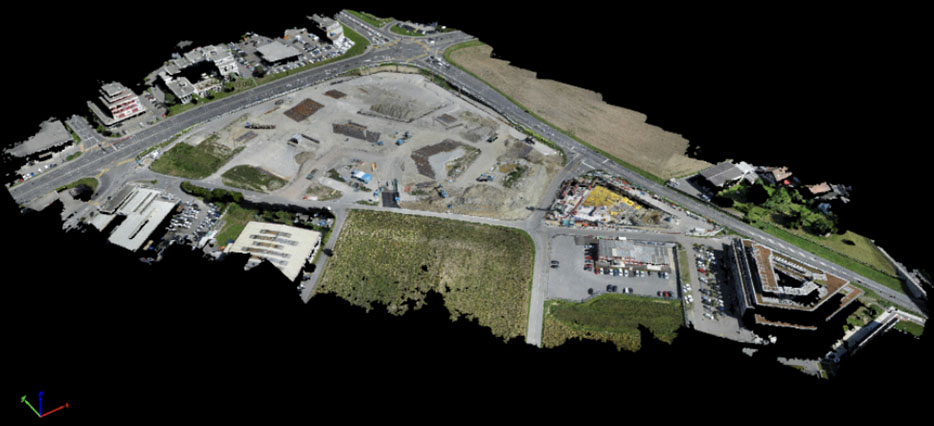

point cloud from lidar mapping
01.08 - HISTORICAL BACKGROUNDS

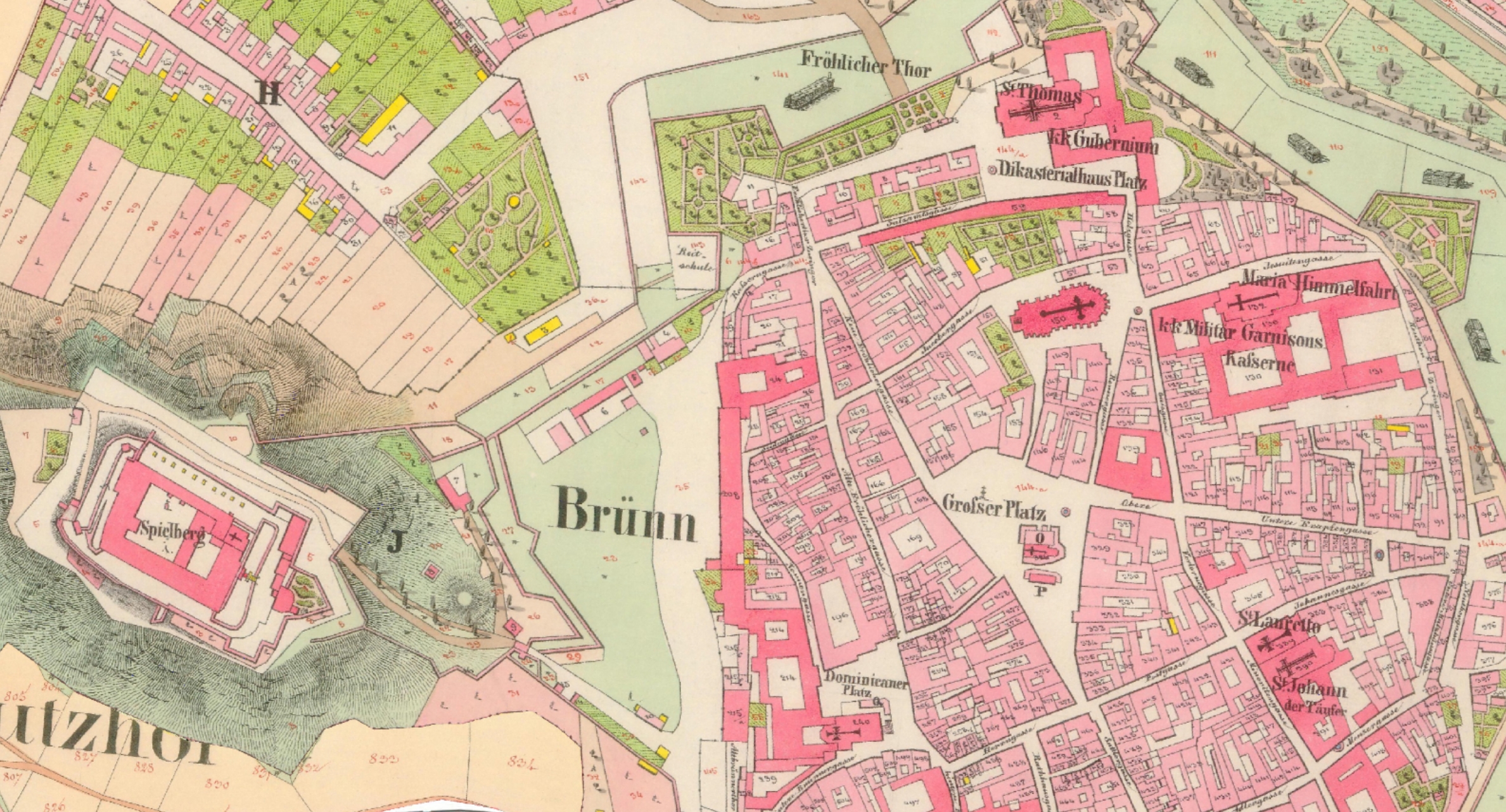

data from the archive, historical maps, old projects from that place, etc.
02 - ARCHITECTURAL STUDY
02.01 - CLIENT SPECIFICATIONS

the client expresses his idea of the building and his expectations about the standard, price, size, etc.


the architect, in cooperation with the client, analyzes the individual functions of the building and their size,
connections in operation, etc.

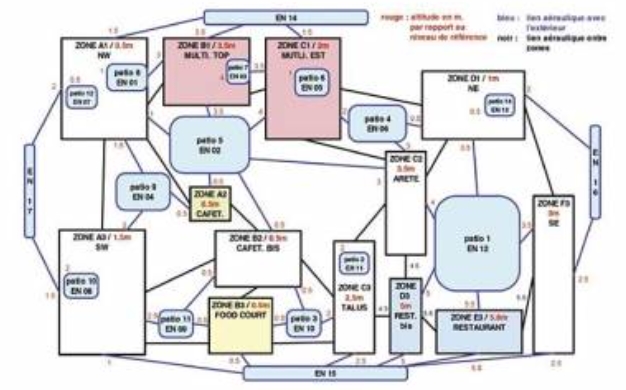

he prepares a basic so-called typological and operational scheme
02.02 - ARCHITECTURAL DESIGN - CONCEPT

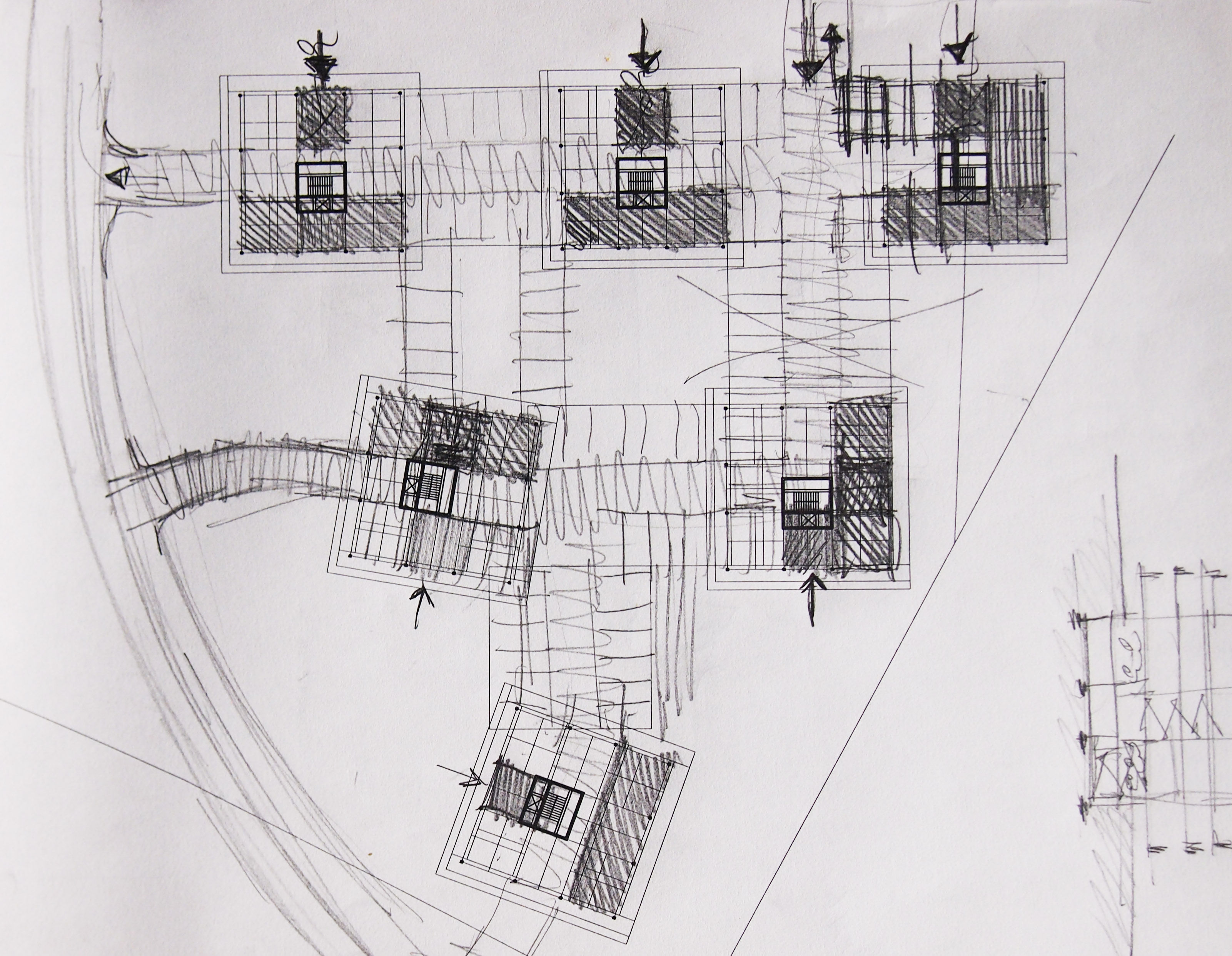

the architect verifies the client's specification on the rough concept in the floor plans
he is looking for the optimal-ideal building shape and location on the plot


simplified sections and vertical arrangement

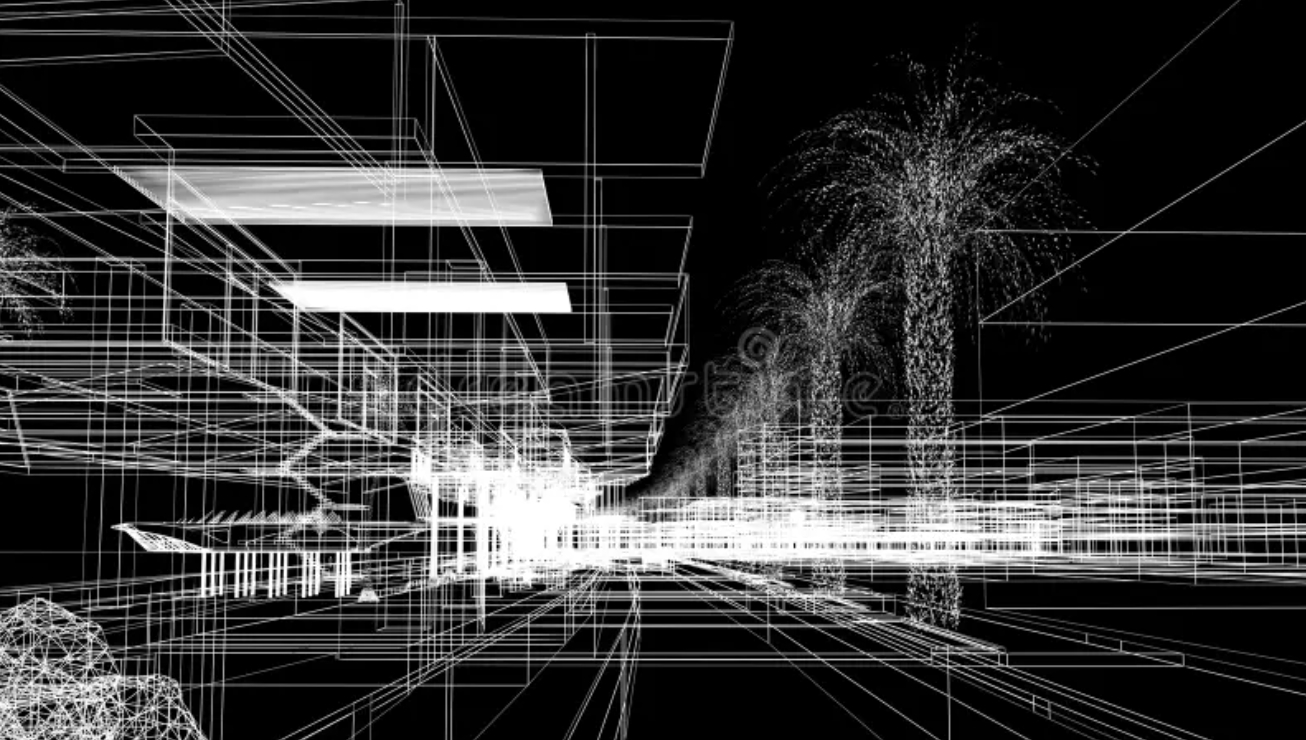

the architect begins to test his idea also on a simplified 3D model
02.03 - ARCHITECTURAL STUDY - 2D - DETAILED

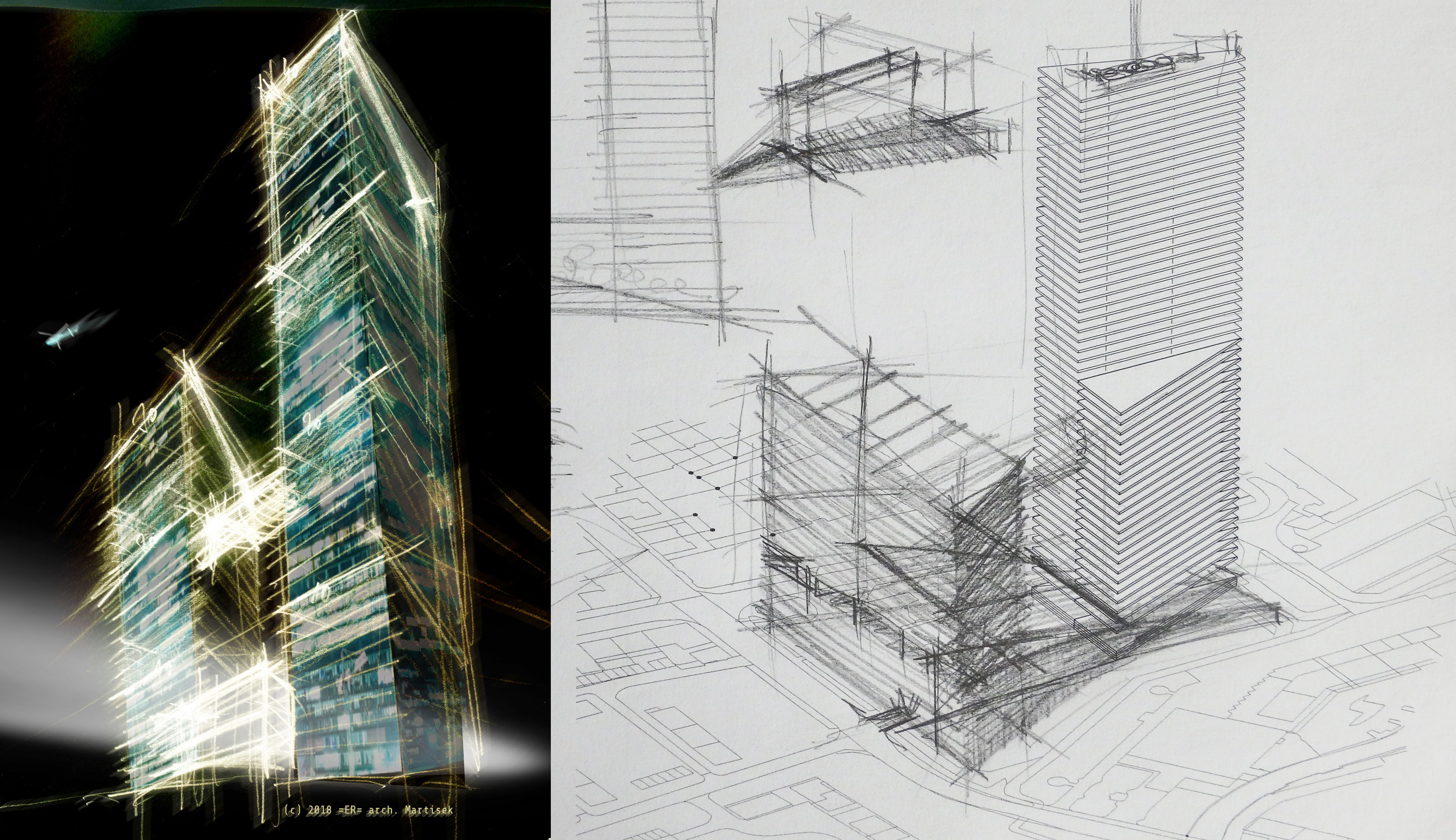

hand sketches are converted into a plan in exact dimensions

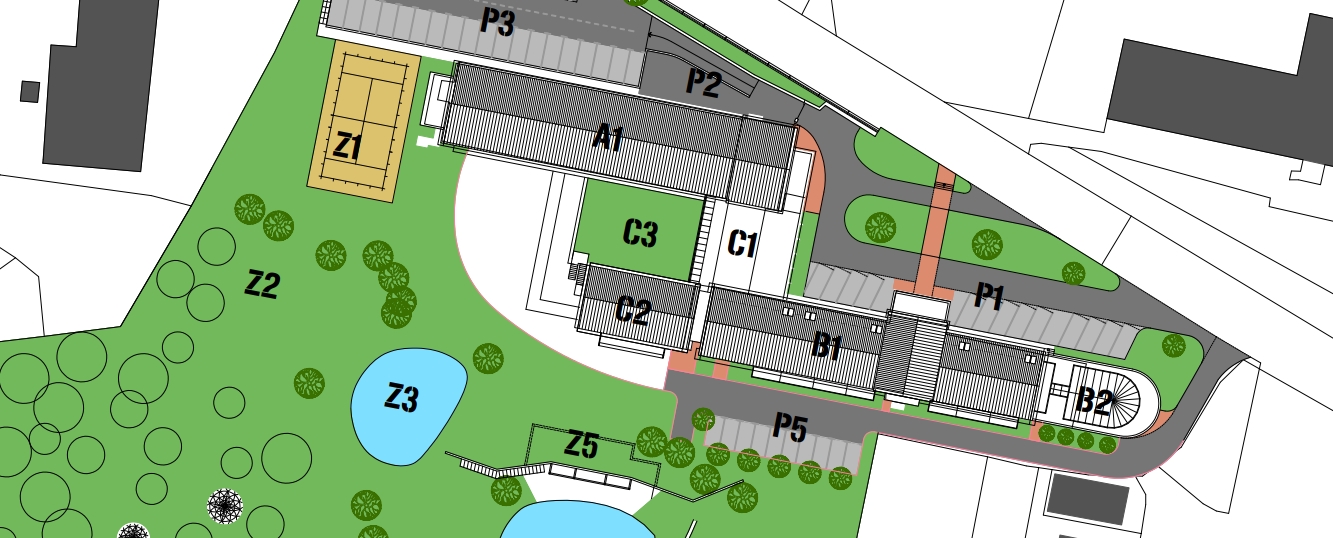

site plan, positioning on the plot

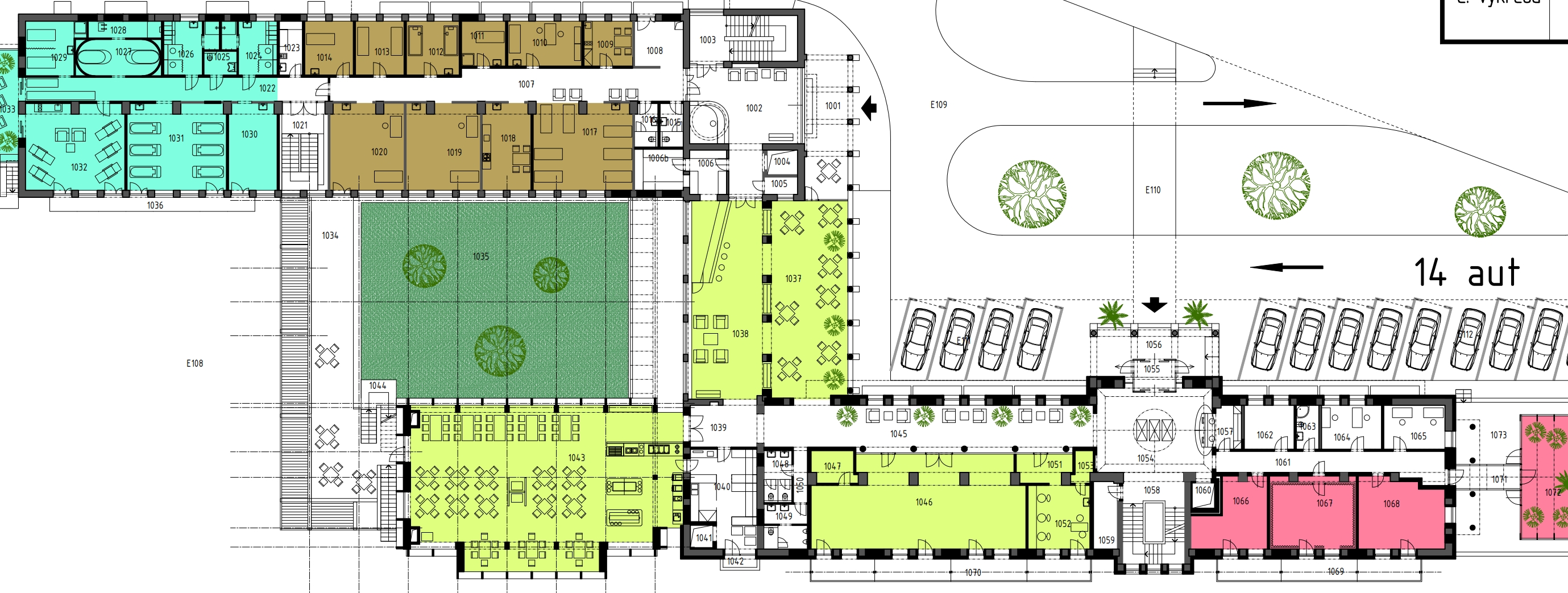

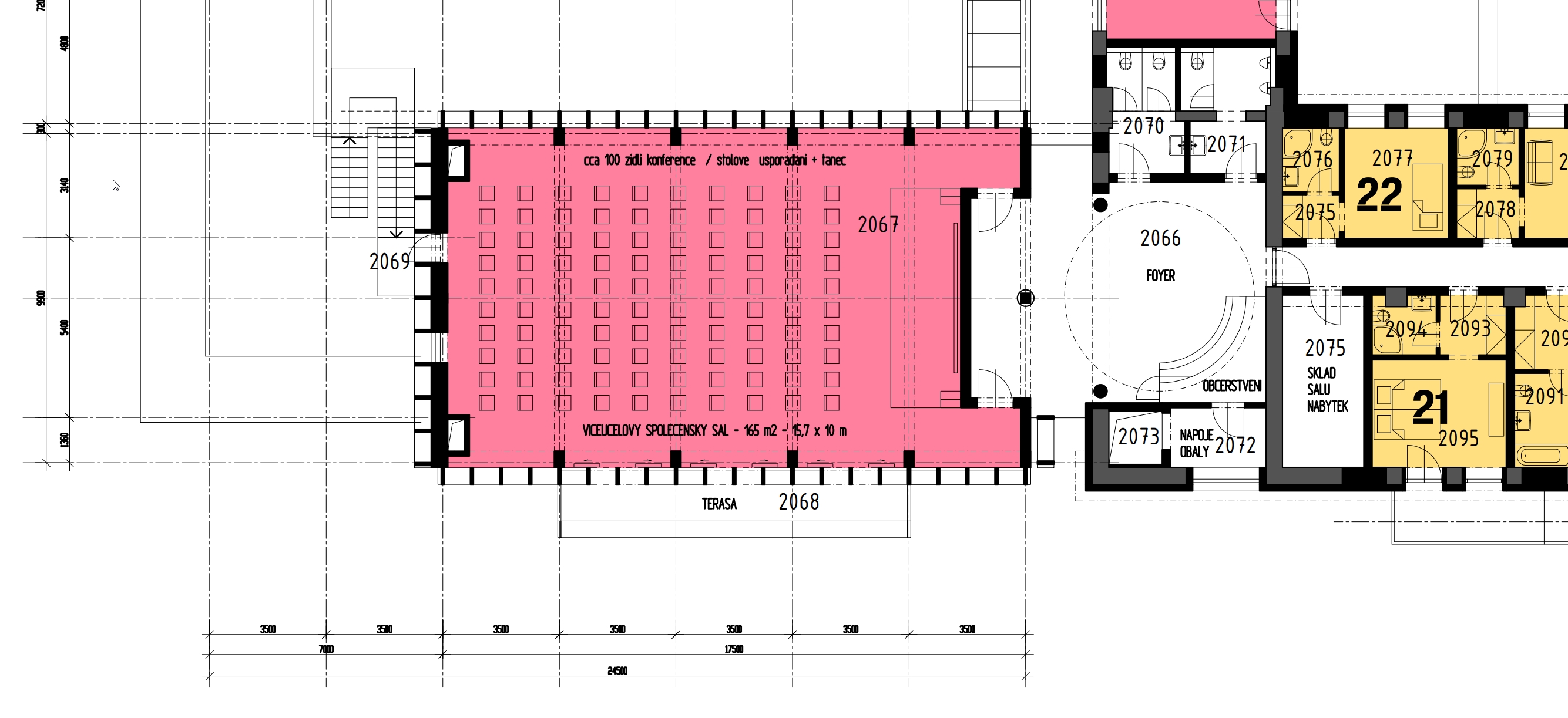

floor plans


the study already contains some major dimensions

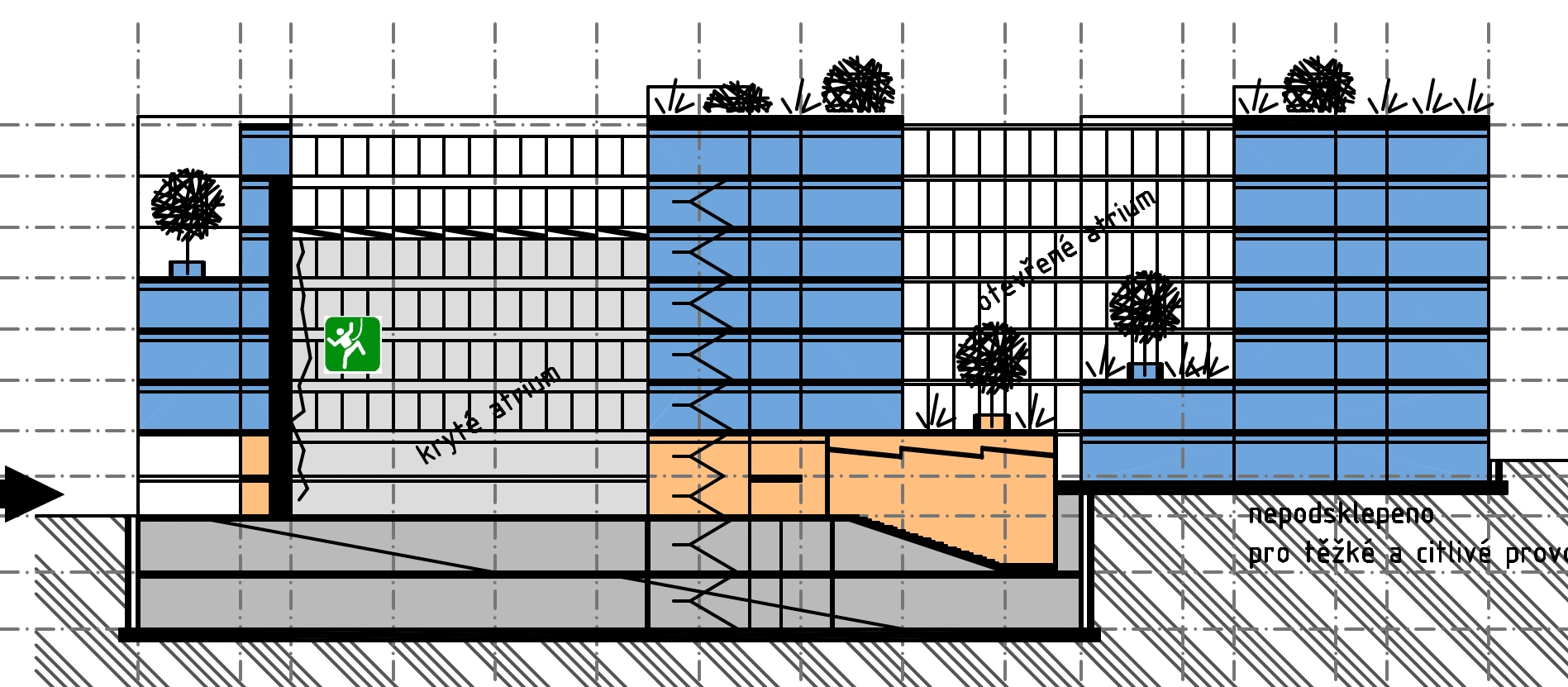

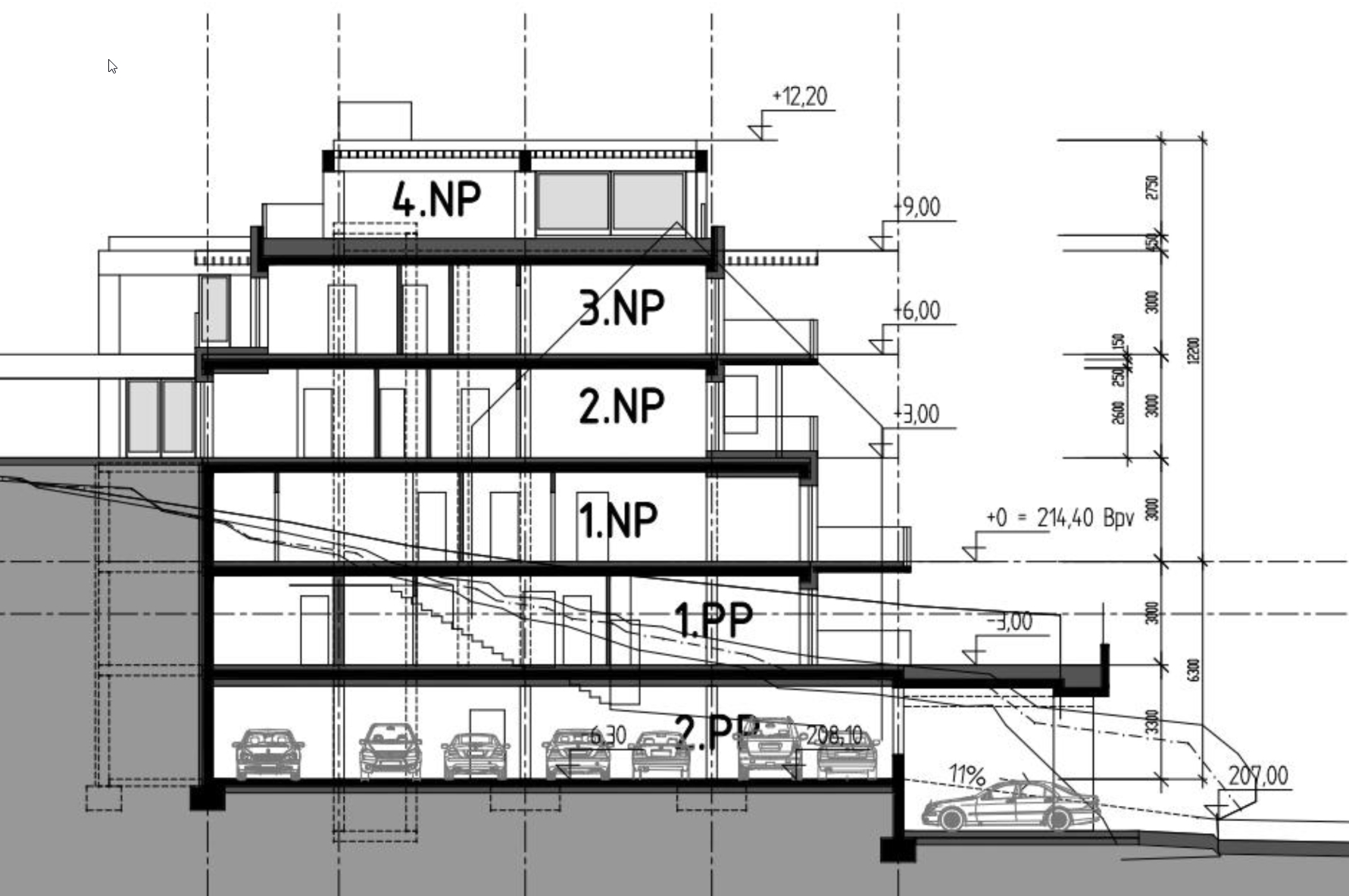

sections


views and elevations
02.04 - ARCHITECTURAL STUDY - 3D - VIRTUAL MODEL

the whole study is converted into different types of virtual 3D model

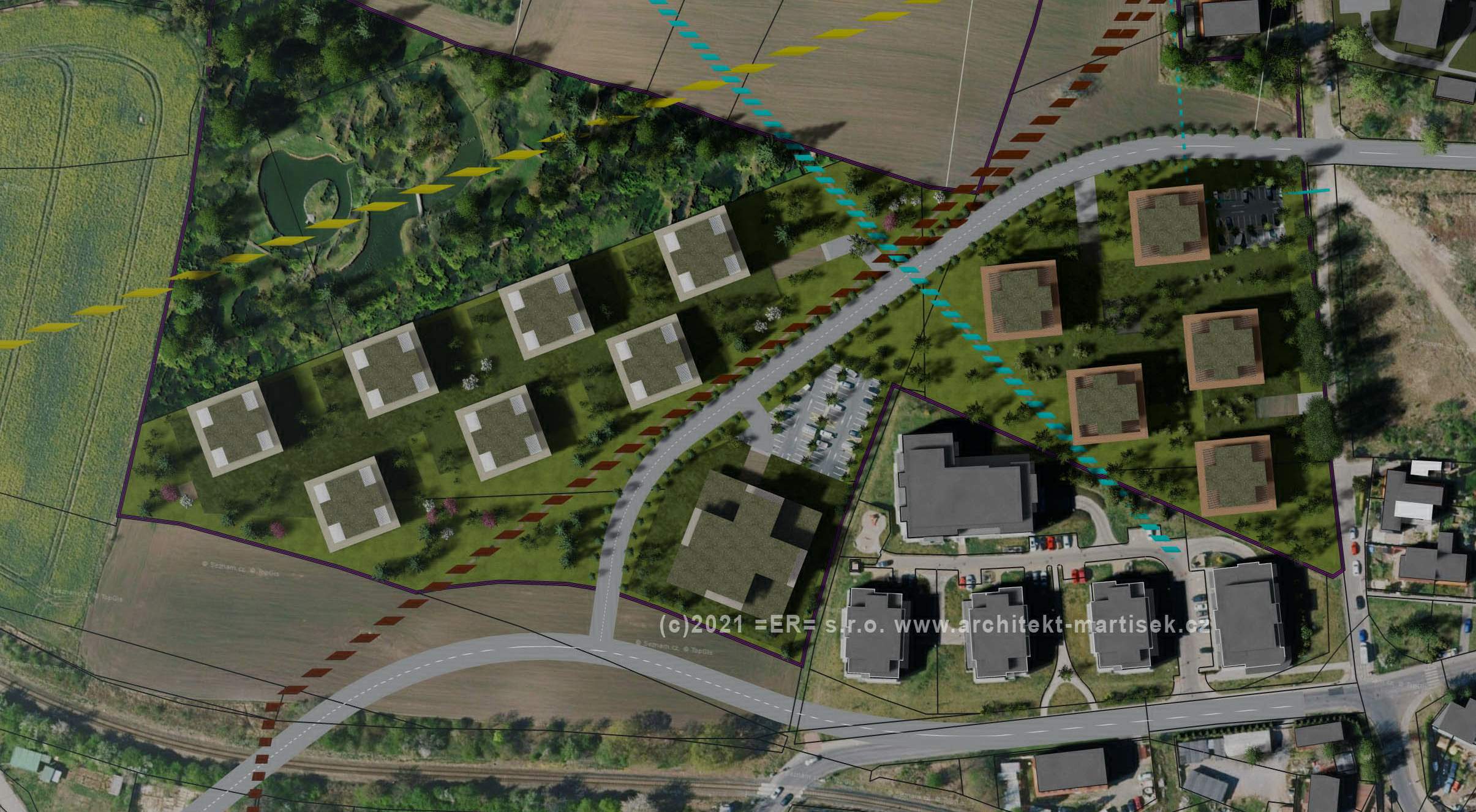

exterior visualization, perspective views, merging with real photos, etc.


visualization of the interior (optionally, only if there is an interior design required)
otherwise simple interiors without furniture of main rooms, such as entrance halls, swimming pools, etc.


flight around video
a- simple, just buildings, roads, trees
b- or more detailed model, with people, moving cars, day / night etc. (more expensive)

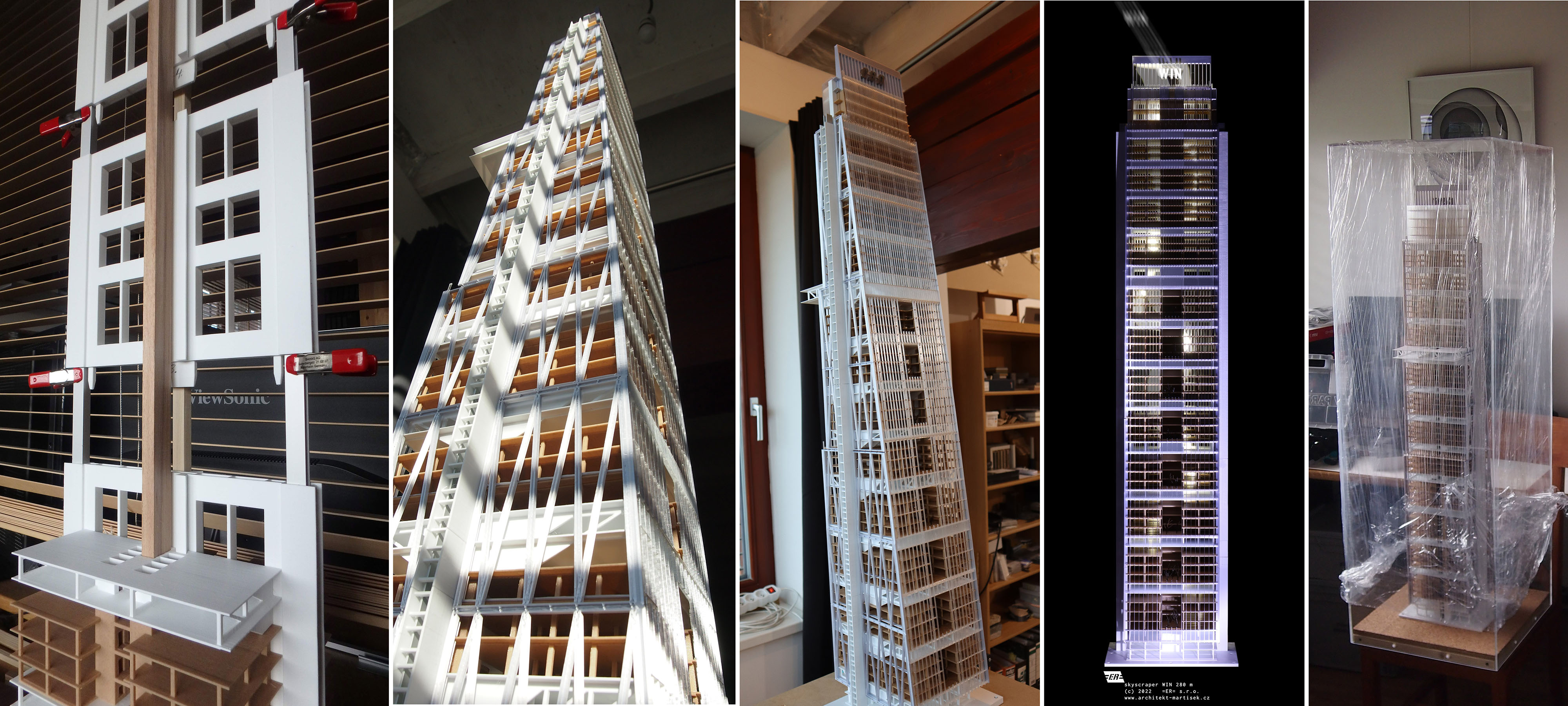

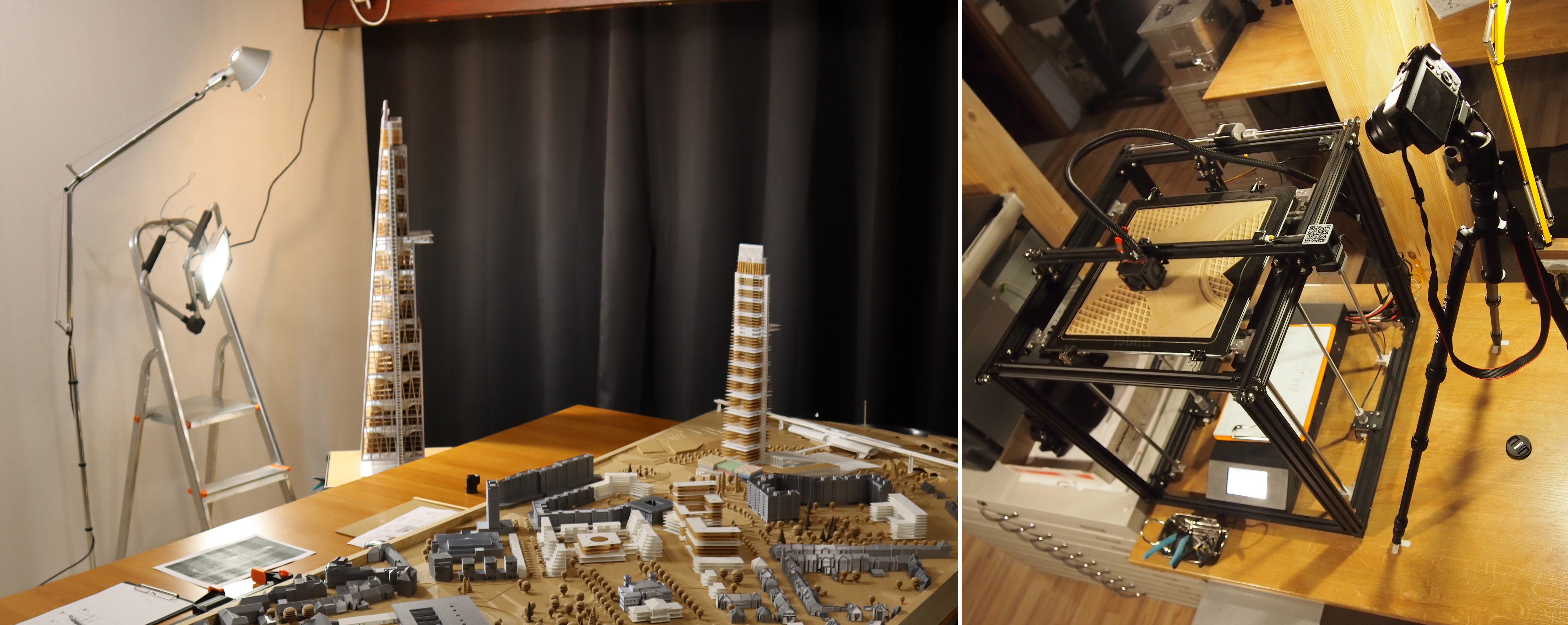

02.05 - ARCHITECTURAL STUDY - 3D - REAL MODEL

printing and buliding a real model, assembling, photography, packaging, ready to go, save transport to client

03 - PROJECT FOR BUILDING PERMISSION
03.01 - BUILDING PART

the architectural concept chpt. 02 is further elaborated into detailed and dimensioned drawings
with relevant technical data and civic engineerings skills

siteplans, all kinds

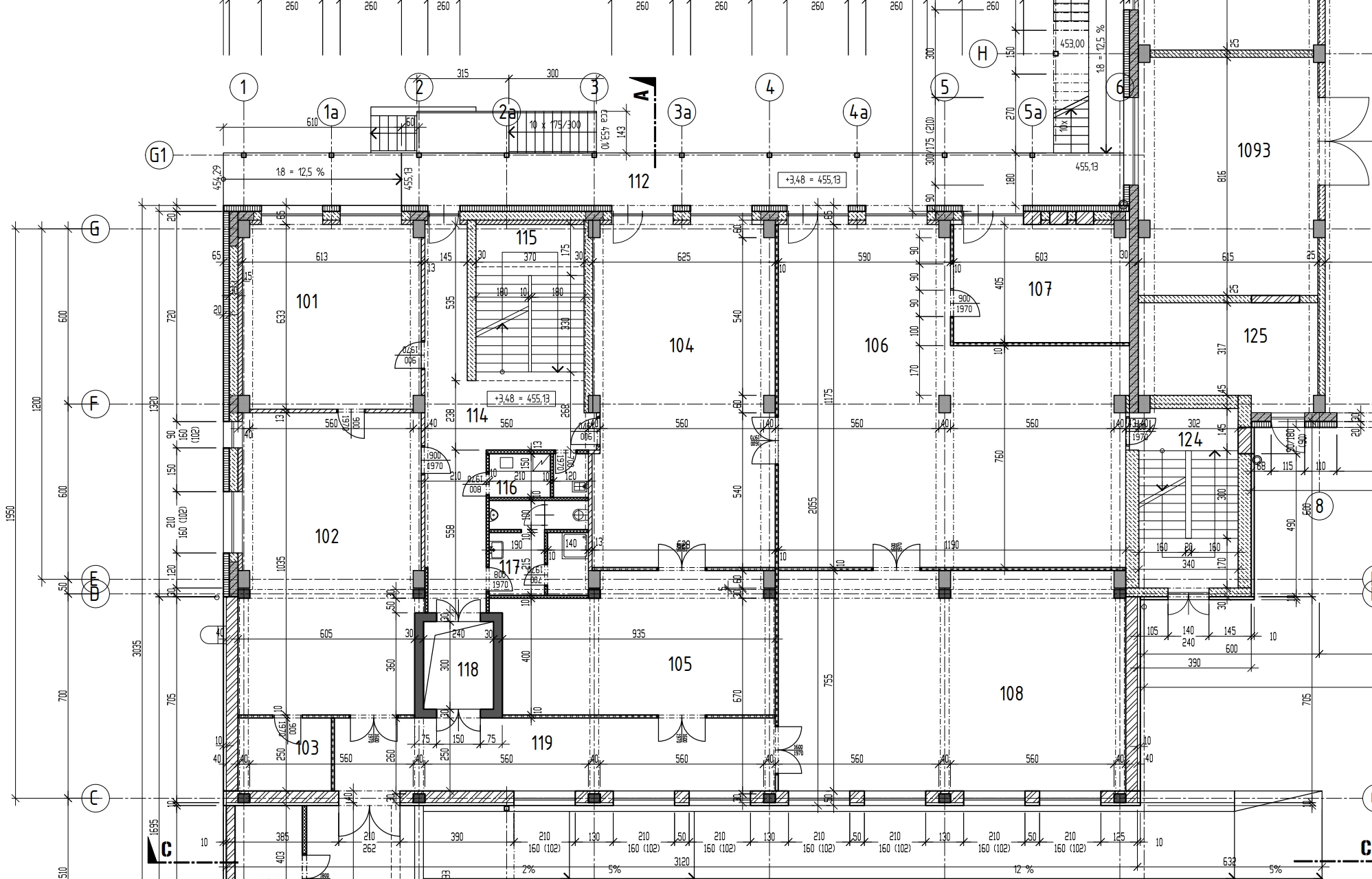

floor plans with all dimensions

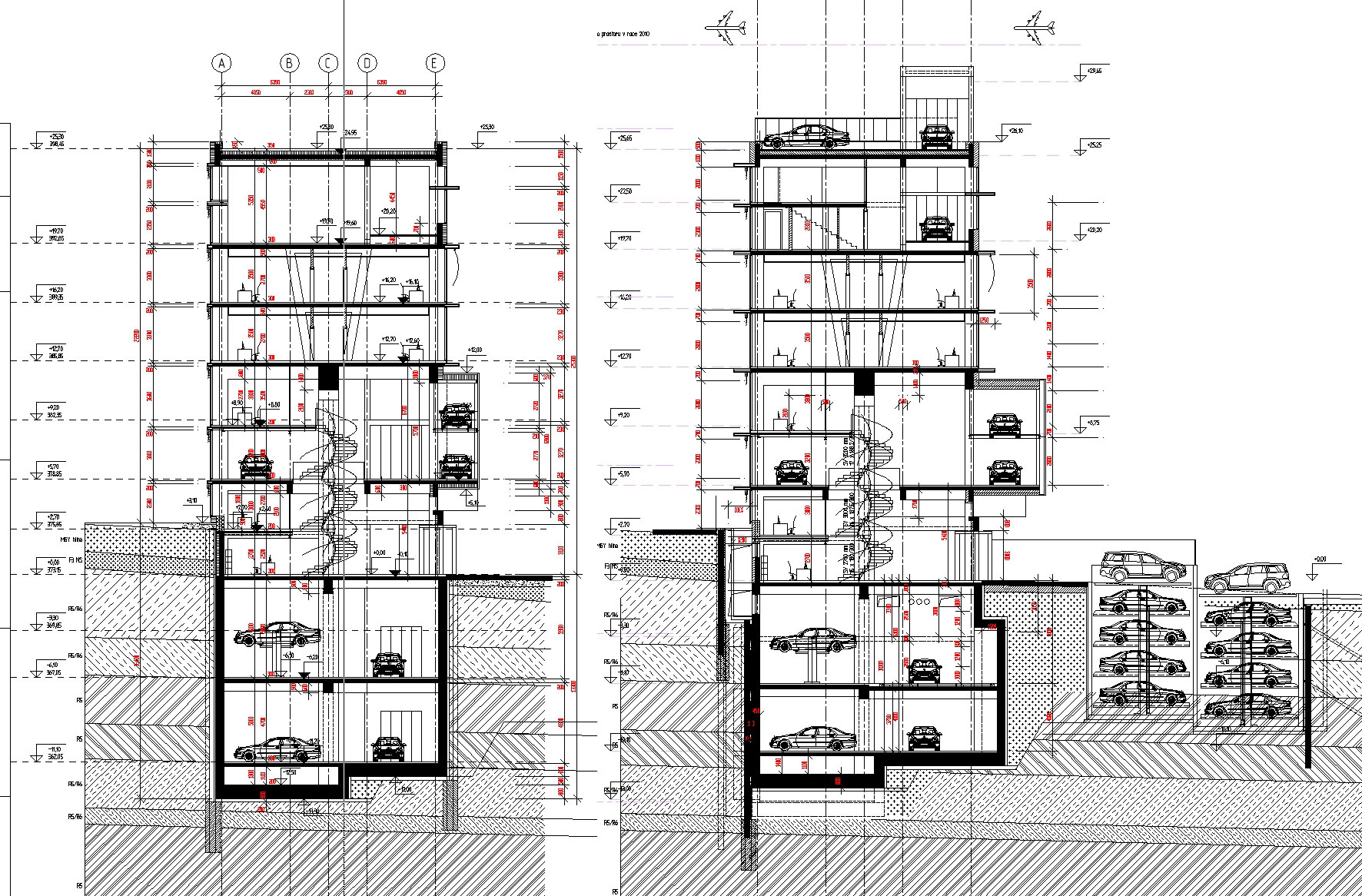

sections

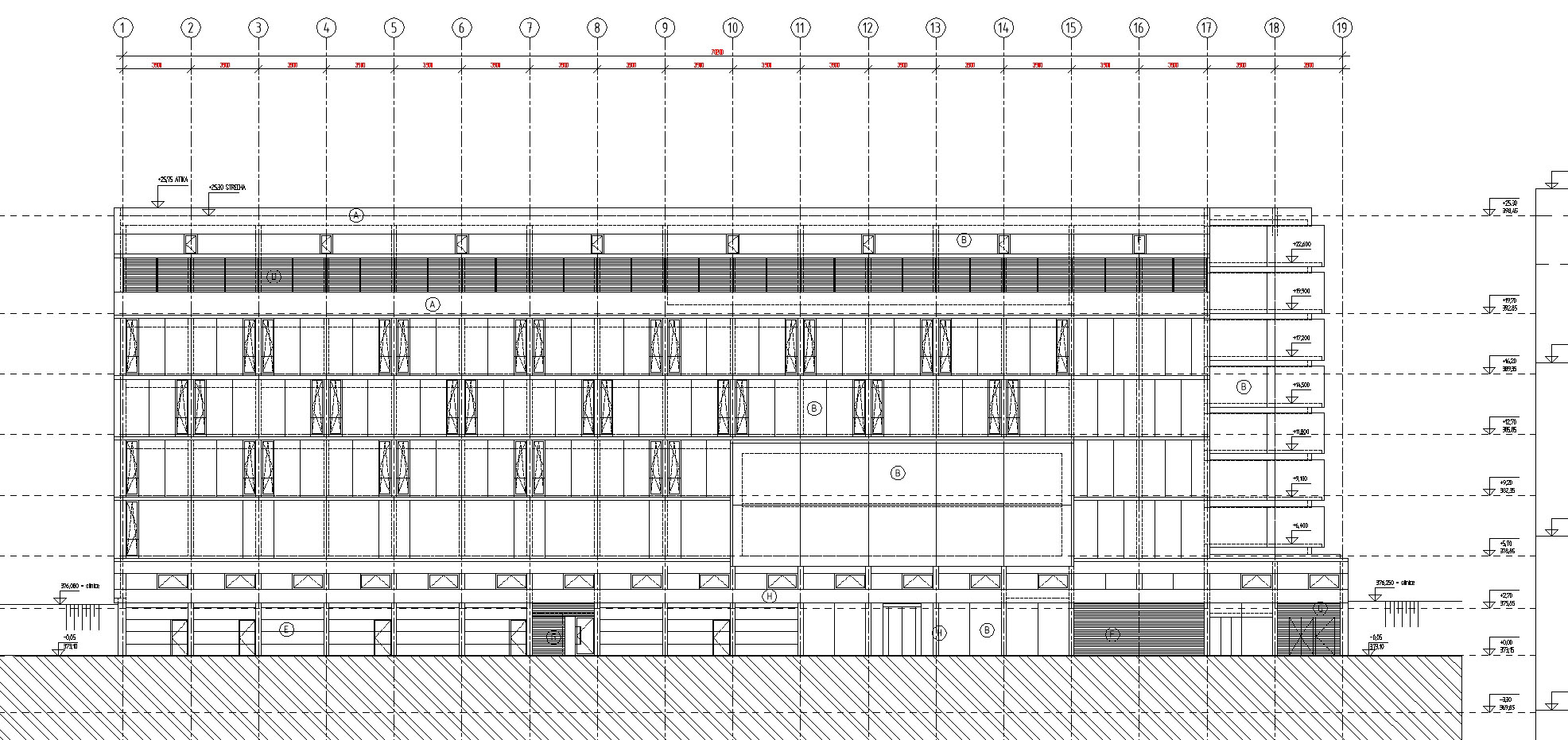

views and elevations
03.02 - TECHNICAL PART: STRUCTURAL, HVAC, MEP... etc.

construction drawings chapt. 03.01 serve as a basis for other specialists

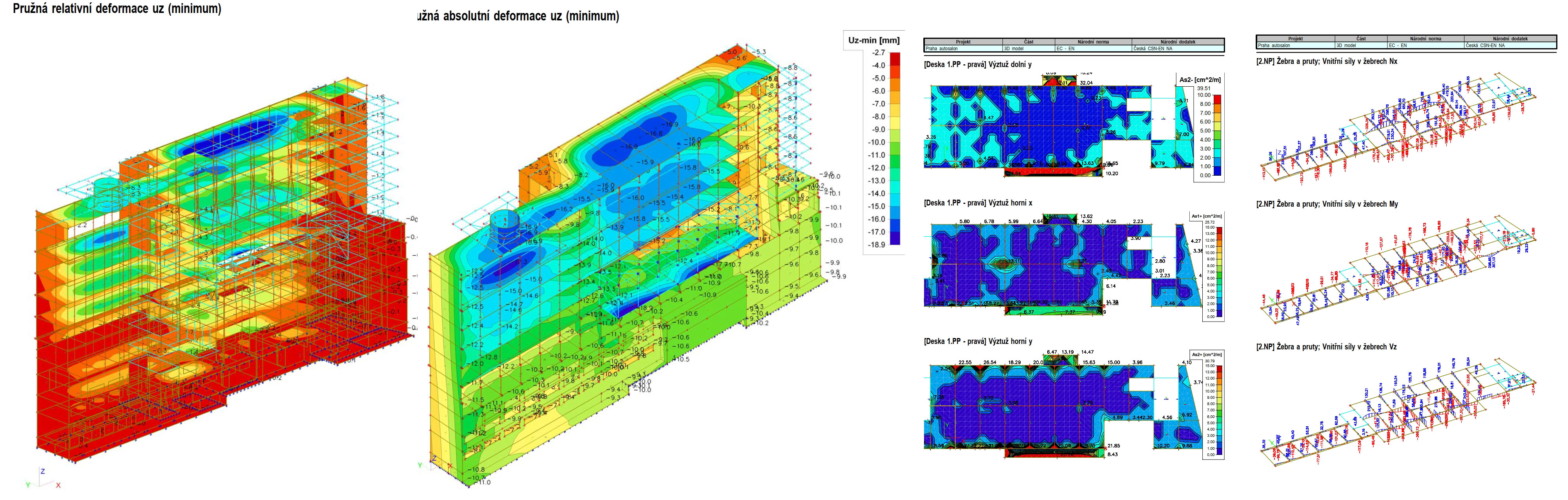

structural calculation and basic dimensioning of bearing profiles

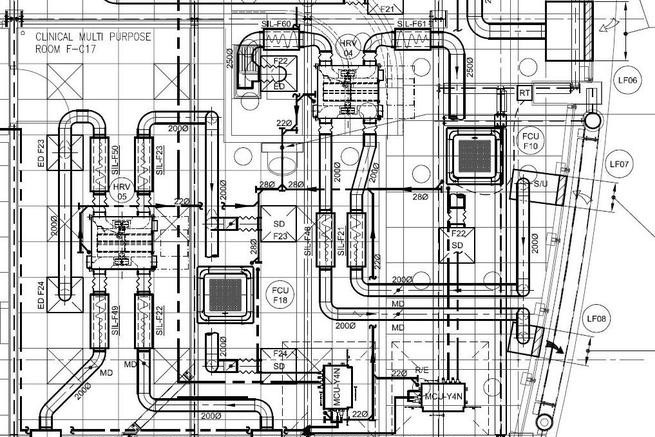

HVAC, MEP, wiring, piping and several other technologies, fire protection... etc.
04 - WORKING PLANS
04.01 - BUILDING PART

the documentation of chpt. 03 is further developed in detail for the purposes of construction and workshops

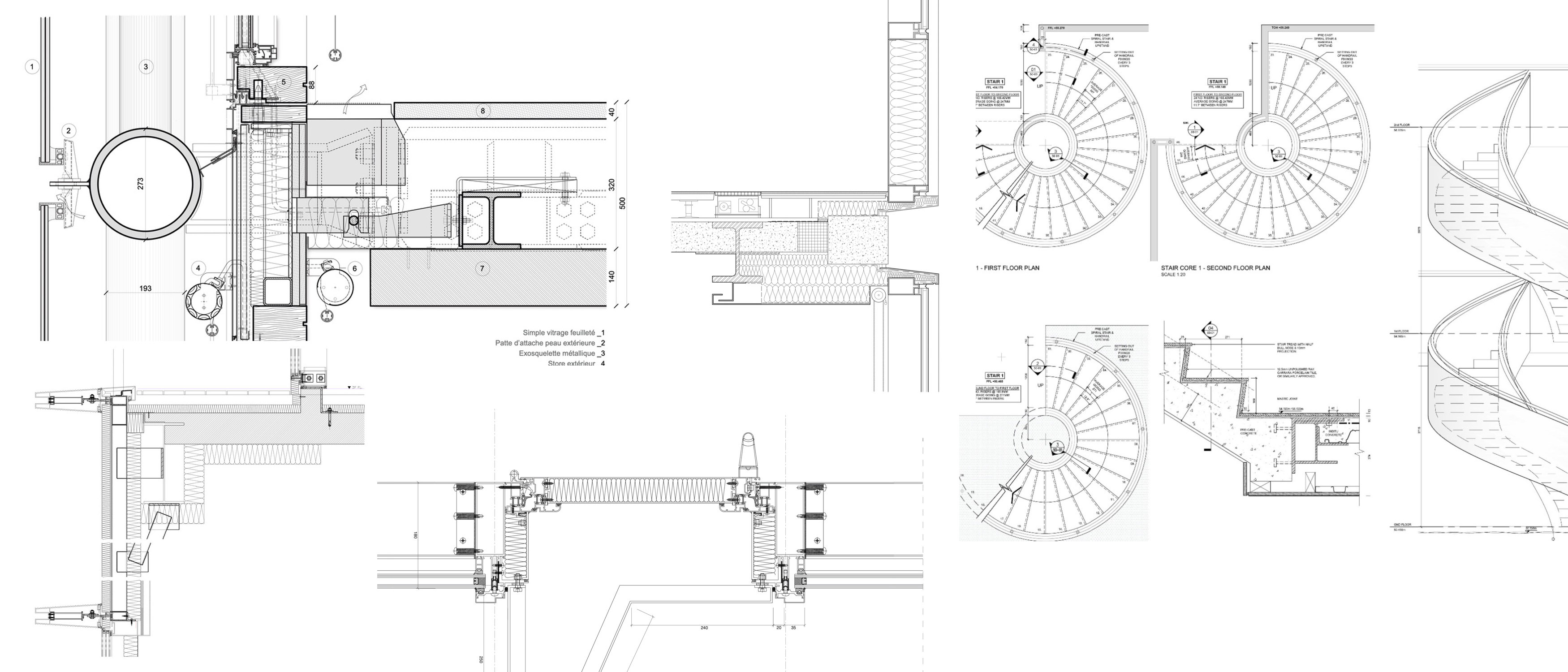

the project contains many construction and structural details such as:

curtain walls, facades, skylights, special roofs, staircases, handrails, insulation details, etc.
in case of a large project, there may be hundreds of detailed drawings
04.02 - TECHNICAL PART: STRUCTURAL, HVAC, MEP... etc.

the documentation of chpt. 03 is further developed in detail for the purposes of construction and workshops
the project contains many construction and structural details such as:

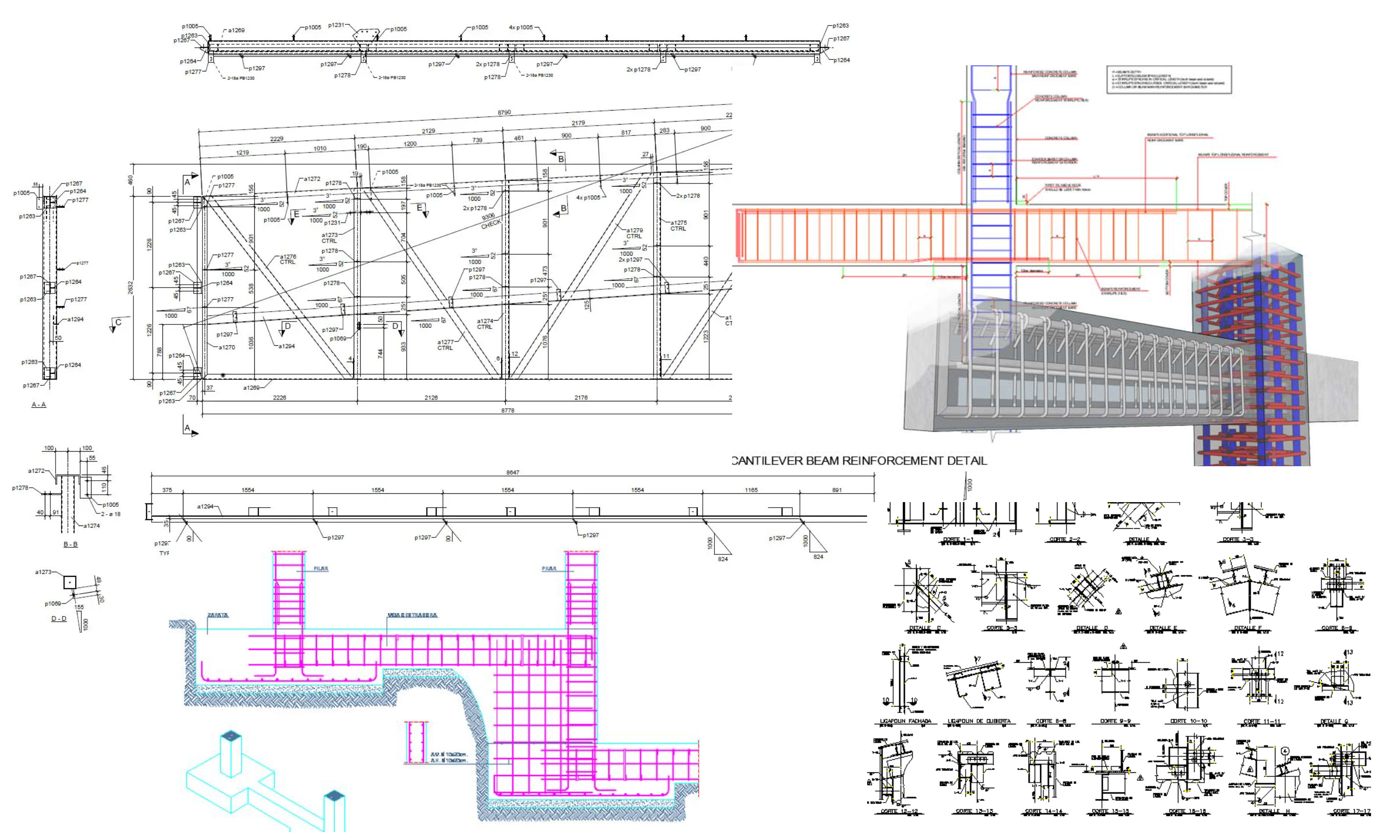

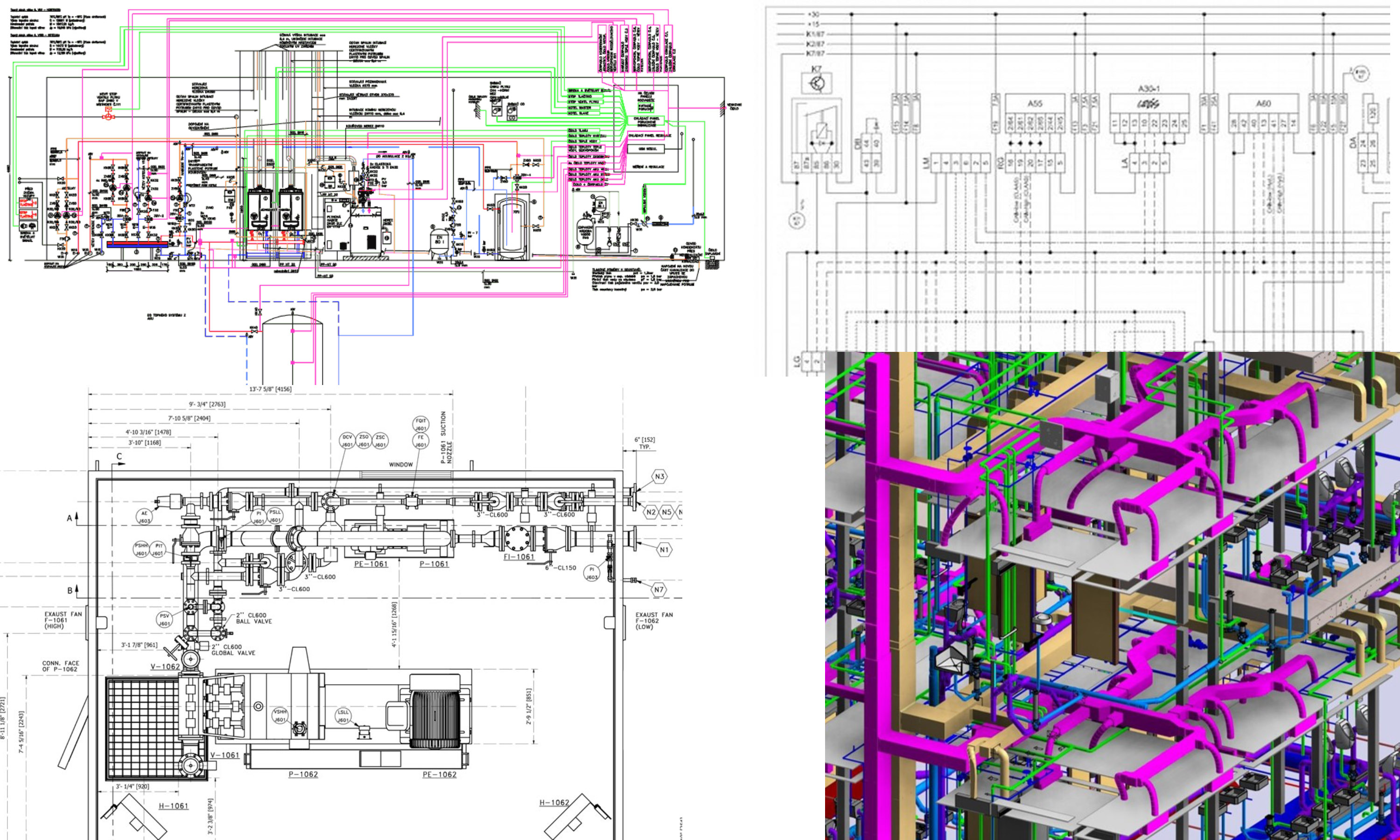

reinforcement drawings, details of steel structures, wooden structures, joints...


detailed pipe distributions and connections, boiler rooms
detailed electrical installations and switchboards, elevator+HVAC+air/cond machine rooms... etc.
05 - CONSTRUCTION SURVEILLANCE
05.01 - ARCHITECTURAL SUPERVISION

checks the project, resolves necessary changes to the construction, etc.
05.02 - CONSTRUCTION SUPERVISION

WE DO NOT DELIVER - the client must arrange himself

it is about daily quality control on the construction site, compliance with technological procedures and the budget
